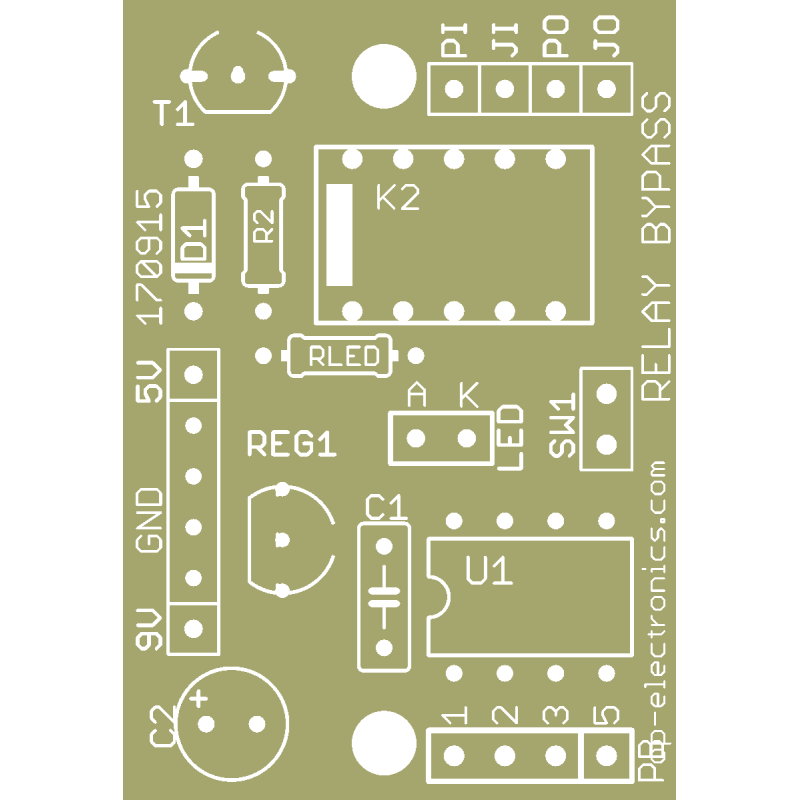

True-bypass relay switch with led indicator
Microprocessor controlled, true-bypass, high quality alternative to mechanical switches
Auxiliary connections allow to connect up to 3 relays (not included with the kit, see datasheet).
The Relay Switch PCB requires the following pre-programmed MCU chip:
Pre-programmed mcu to control up to 3 relays with 3 footswitches.
Reference: SW-319
Brand: Daier
Normally Open momentary OFF(ON) SPST Footswitch
Reference: K-360
Base Diameter: 19.5mm Height: 11.5mm Shaft Diameter: 6.40mm Mounting: Screw
These enclosures have minor paint defects. Die-cast aluminium enclosure Dimensions (external): 120*94.5*34mm Thickness: 2.50mm Equipped with screws
Reference: K-387
Base Diameter: 19.5mm Height: 11mm Shaft Diameter: 6.40mm Mounting: Screw
These enclosures have minor paint defects. Die-cast aluminium enclosure Dimensions (external): 122*66*39.5mm Thickness: 2.50mm Equipped with screws
These enclosures have minor paint defects. Die-cast aluminium enclosure Dimensions (external): 122*66*39.5mm Thickness: 2.50mm Equipped with screws
True-bypass relay switch with led indicator
